TRAILER LIGHT POWER MODULE
2
sold in last
8
hours
$164.10
TRAILER LIGHT POWER MODULE The unit is rated for up to 4.2 amps for Turns/Stops circuits...

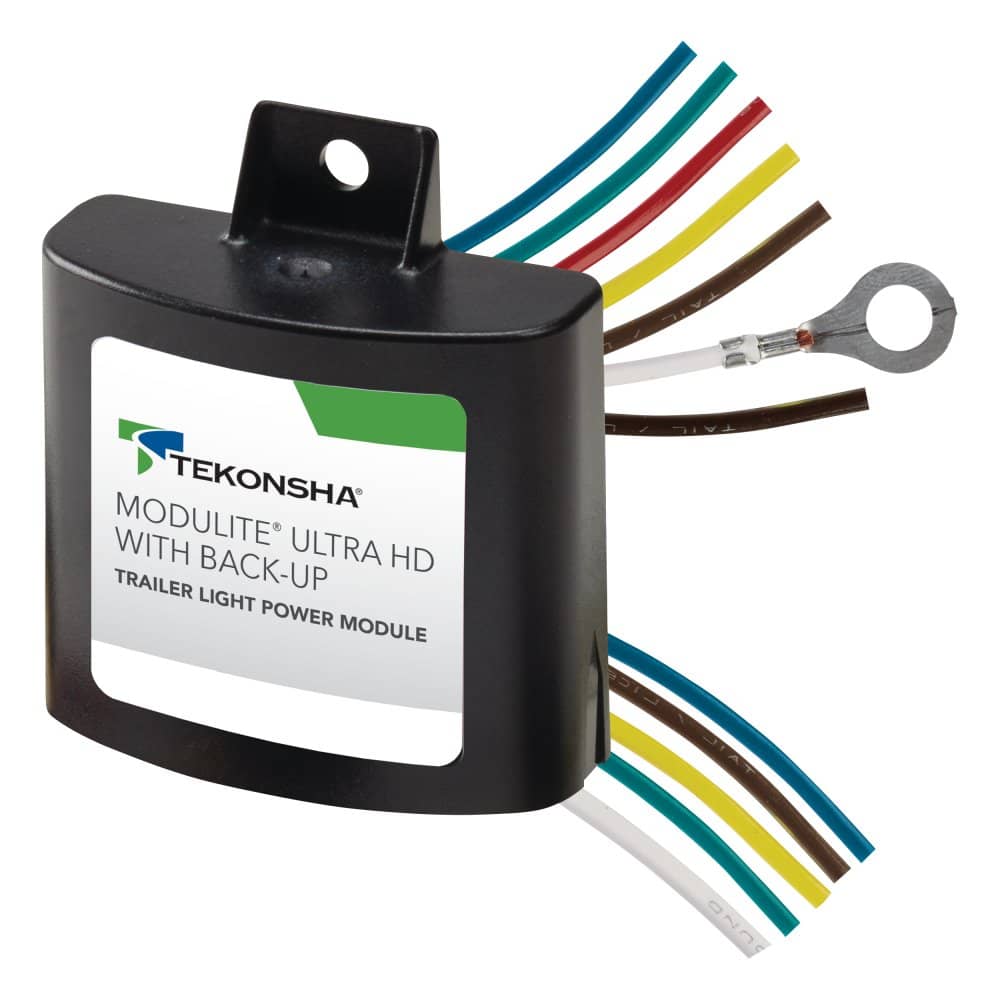

TRAILER LIGHT POWER MODULE
- The unit is rated for up to 4.2 amps for Turns/Stops circuits and 16 amps for the Taillight circuit
- Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
- Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
- Will work with either LED/Incandescent bulbs (vehicle & trailer)
- Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
- Designed not to send feedback thru the vehicle circuits
- The trailer brakes will override the hazard lamps when the brake is activated
- Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
- Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)
- Will not work with vehicles with lo
