POWER MODULE CONVERTER
2
sold in last
8
hours
$86.41
TEKONSHA POWER MODULE CONVERTER The unit is rated for up to 4.2 amps for Turns/Stops circuits...

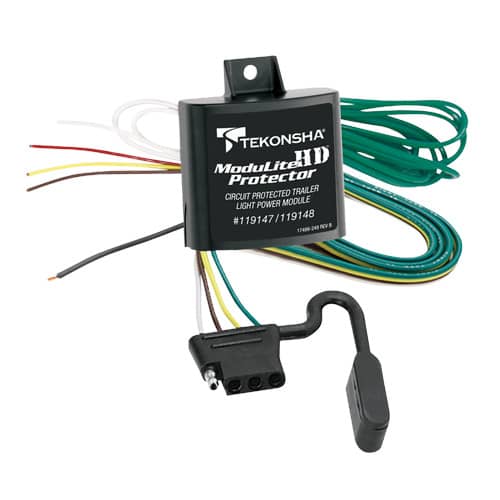

TEKONSHA POWER MODULE CONVERTER
- The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
- Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
- Will work with either LED/Incandescent bulbs (vehicle & trailer)
- Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
- Designed not to send feedback thru the vehicle circuits
- The trailer brakes will override the hazard lamps when the brake is activated
- The taillight circuit has been upgraded to work with vehicles that use a pulse width modulation (PWM), this will allow the converter to turn on fully and gives the trailer lights full brightness during activation
- Will work with most vehicles that have a multiplex system for lighting
- Will not work with vehicles with low-side switch<
